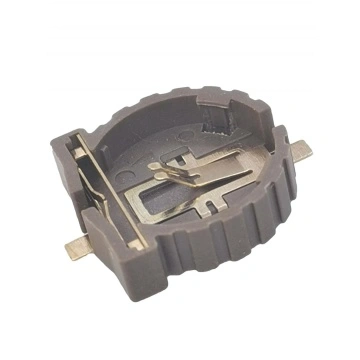

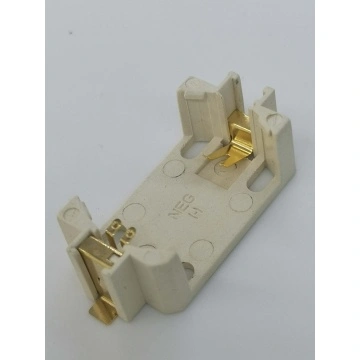

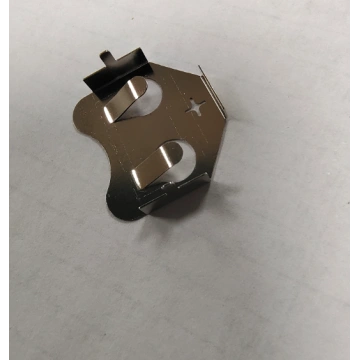

Coin Cell Holders

Coin/Button Cell - Holders, Thru-Hole and Surface Mount
Lithium Coin Cell Battery Holders

Coin Battery Holder・Coin Cell Holder・Button Cell Holder (CR498・ CR503・CR1058・CR1220・CR1225・CR1620・CR1632・CR2016・CR2032・CR2330 ・CR2430・CR2450・CR2477)

(THM) Thru Hole Mount & (SMT) Surface Mount - Available for 12mm, 16mm, 20mm, 23mm, 24mm and 30mm Dia. Cells

These holders are manufactured from UL rated 94V-O materials. Contacts made of high quality spring steel to assure reliable connections and allow contact resistance. Each contact is clearly marked with its polarity to assure proper battery insertion.

Lightweight and rugged, these PCB Coin Cell Holders offer uniquely designed notched battery slot that assures quick and easy insertion and replacement of all major battery manufacturers' lithium coin cells.

Availability is from stock through Keystone's Global Distributor Network. Application engineering services are available to meet special customer requirements.

DESIGN ADVANTAGES
Low profile for high density packaging
Reliable spring tension contacts assure low contact resistance
Retains battery securely to withstand shock and vibration
Rugged construction, light weight
Compatible with vacuum and mechanical pick & place systems
Base material UL rated 94V-0. Impervious to most industrial solvents
Clearly marked polarities to help guard against improper insertion
